PA Wire Rope Hoist

Name: PA Wire Rope Hoist
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

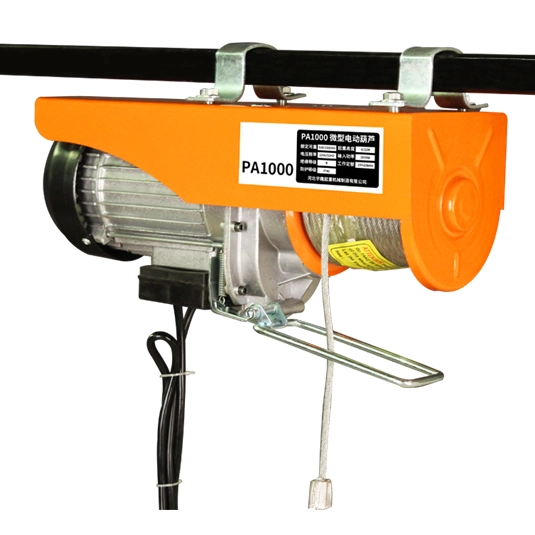

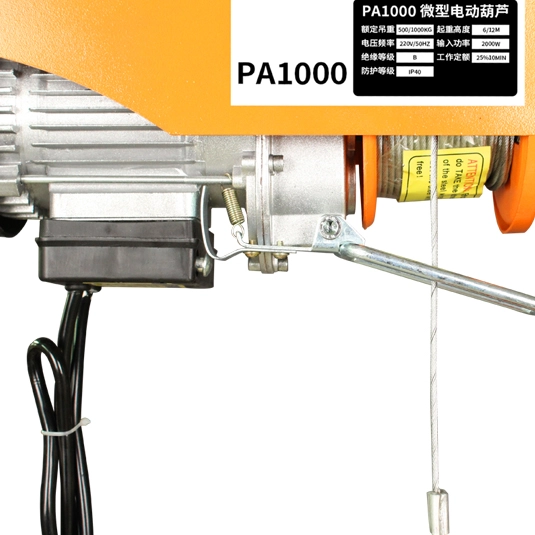

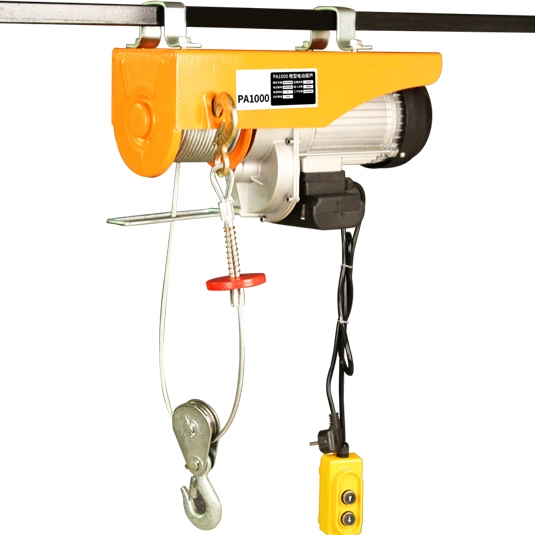

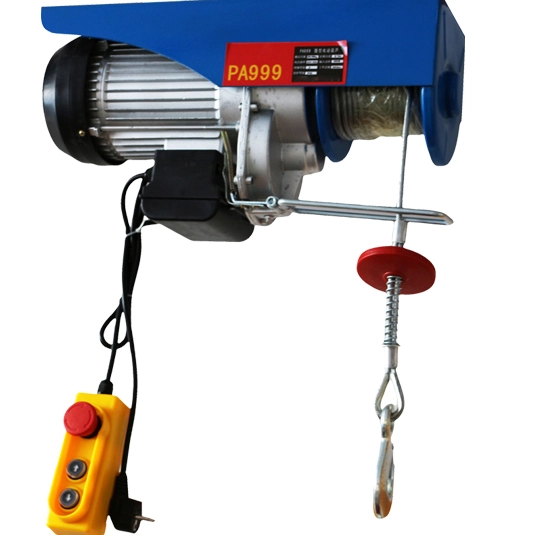

PA mini electric wire hoist, available in stationary and running types, can lift goods under 1200kg. It's simple, easy to install, uses single-phase power, and has a 30m rope at most. It can be widely used in civil and industrial fields, even in narrow spaces.

 

Specifications of PA Wire Rope Hoist

Model	PA200	PA250	PA300	PA400	PA500	PA600	PA800	PA1000	PA1200
Rated Volt (v)	110/220 230/240V~50HZ S320% 10min
Input Power (w)	480	510	600	950	1020	1200	1300	1600	1800
Capacity Load (kg)	100/200	125/250	150/300	200/400	250/500	300/600	400/800	500/1000	600/1200
Lifting Height (m)	12/6	12/6	12/6	12/6	12/6	12/6	12/6	12/6	12/6
Lifting Speed (m/min)	10/5	10/5	10/5	10/5	10/5	10/5	10/5	10/5	10/5
Qty/CTN (Pcs)	2	2	2	2	2	2	2	1	1
Motor P.R.M	2800	2800	2800	2800	2800	2800	2800	2800	2800
Packing Size (cm)	473716	443716	443716	524217	524217	524217	524217	562535	562535
Net Weight (kg)	22	22	22	34	34	34	36	36	32
