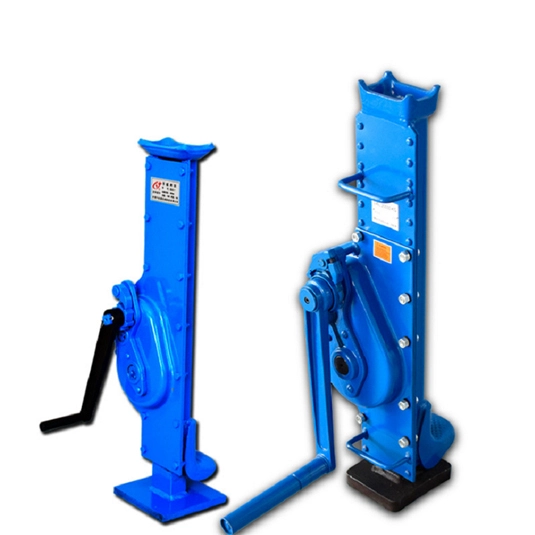

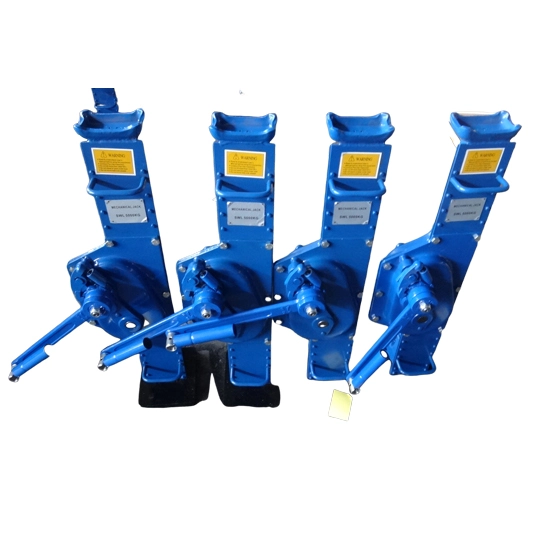

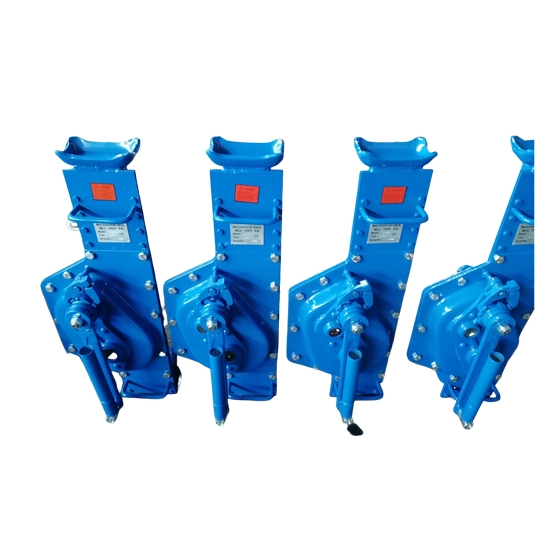

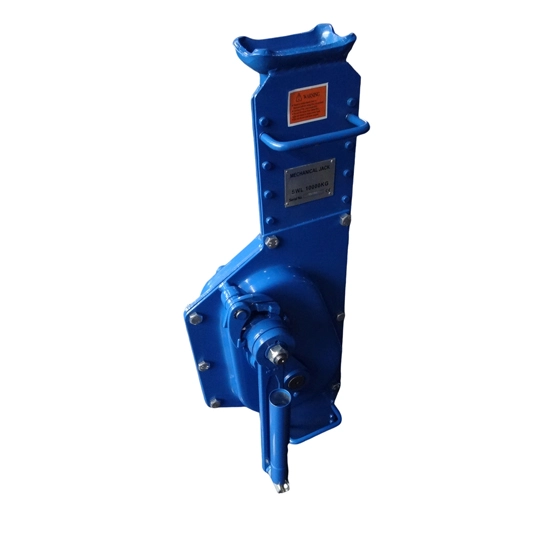

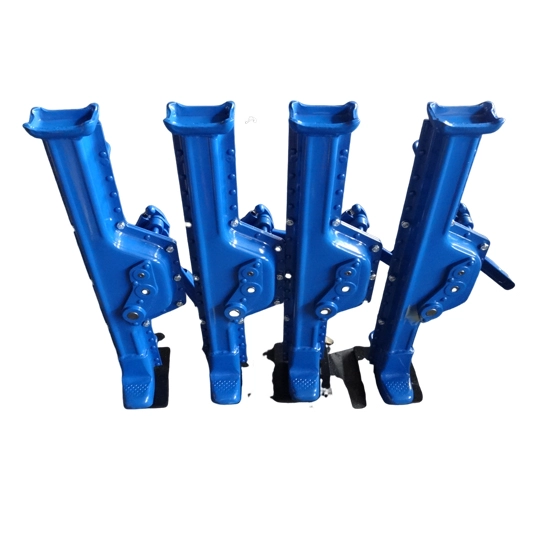

Mechanical Jack

Name: Mechanical Jack
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

The mechanical steel jack, based on mechanical transmission, is great for repair shops and factories. It's easy - to - maintain without oil/seals and has no fall risk due to gear design.

 

Specifications of Mechanical Jack

Model		1.5t	3t	5t	10t
Capacity (kg)		1500	3000	5000	10000
Running test load (KN)		22	44.1	73.5	147
Headroom(drawn close-up) Hmin (MM)		300	350	400	580
Dimensions (MM)	A	81	83	108	124
	B	100	130	140	140
	C	600-900	735-1090	730-1075	800-1190
	D	70-370	70-425	80-425	100-490
	E	55	60	71	86
	F	46	45	68	76
	G	110	138	170	170
	H	225	249	249	300
	K	147	170	190	252
	R	119	140	155	185
	S	166	235	217	187
	T	113	128	128	250
Net.weight (KG)		16	20	28	46

Features of Mechanical Jack

1. Sturdy Base & Welds
A wide, strong base and high - quality welded racks handle heavy - duty tasks with ease, providing stable support.

2. Stable Molded Claw
The one - time molded claw with texture ensures stability, preventing load slippage.

3. Precision Gears for Smoothness
Solid, high - strength gear rack and gear components, along with a high gear ratio, offer a smooth operating experience.

4. Durable Shell
The one - time molded solid shell, made with riveting and welding, is sturdy and long - lasting.

5. Superior Lifting
Higher lifting range than hydraulic jacks, with controllable lifting/lowering speed.

6. Low - Maintenance & Safe
No hydraulic oil or seal rings, easy to maintain. Gear ratio design eliminates the risk of unexpected falls.
