Permanent Magnetic Lifter

Name: Permanent Magnetic Lifter
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

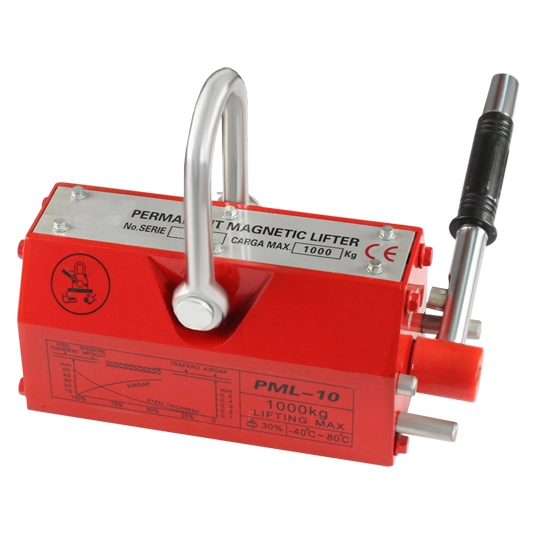

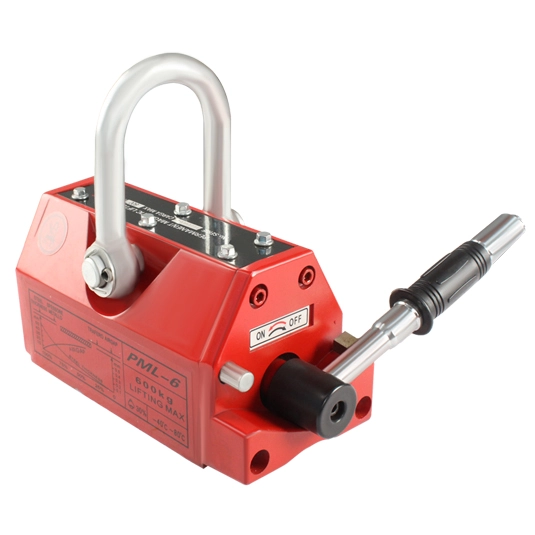

Permanent magnetic lifter, also known as magnetic plate lifter, is a highly efficient and reliable tool designed for lifting and moving ferromagnetic materials such as steel plates, bars, and machinery parts. As one of the professional permanent magnetic lifter manufacturers, Huaxin offers high-quality and reliable permanent lifting magnets with on off control designed for lifting and transporting ferromagnetic materials such as steel plates, bars, and machinery parts. For detailed product information or to place an order, please contact us!

 

Specification of Permanent Magnetic Lifter

Model (kg)	Rated oad (kg)	Pull off force (kg)	Size					Net weight (kg)
Model (kg)	Rated oad (kg)	Pull off force (kg)	L	L1	W	H	R	Net weight (kg)
YS-100	100	300	130	83	63	67.5	190	2.7
YS-200	200	600	195	153	63	67.5	190	5
YS-400	400	1200	210	155	89	95	210	9.18
YS-600	600	1800	285	240.5	120	115	248	18.6
YS-1000	1000	3000	300	256	137	135	280	33.8
YS-2000	2000	5000	500	415	152	165	368	64.9
YS-3000	3000	7500	610	500	153	165	370	82
YS-5000	5000	12500	620	520	230	215	510	196

Features of Permanent Magnetic Lifter

1. Permanent magnetic lifter is powered by permanent magnets - It provides a strong and reliable holding force without the need for external power.

2. Permanent magnetic lifter is ideal for handling ferromagnetic materials- It is commonly used for lifting steel plates, bars, and other magnetic objects.

3. Permanent magnetic lifter is safe and energy-efficient- It operates without electricity, reducing energy costs and eliminating the risk of power failure.

4. Permanent magnetic lifter is easy to operate - It features a simple lever or switch to activate and release the magnetic force.

5. Permanent magnetic lifter is durable and low-maintenance - Its robust design ensures long-lasting performance with minimal upkeep.

6. Permanent magnetic lifter is versatile in application - It can be used in industries such as steel manufacturing, construction, and logistics.

7. Permanent magnetic lifter is lightweight and portable - It can be easily transported and attached to cranes or other lifting equipment.

8. Permanent magnetic lifter is cost-effective - It offers a reliable and economical solution for material handling without recurring energy costs.
