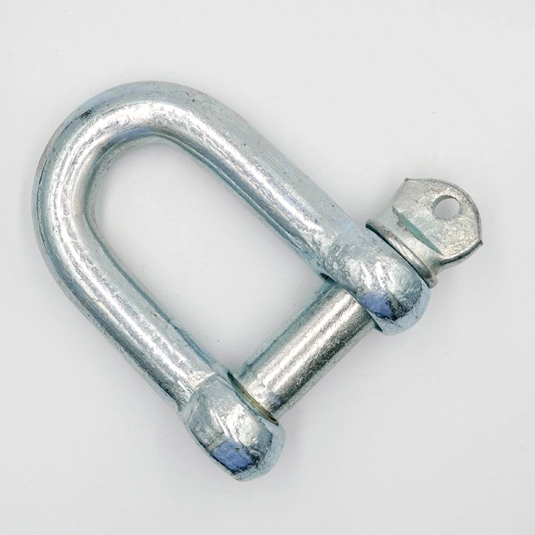

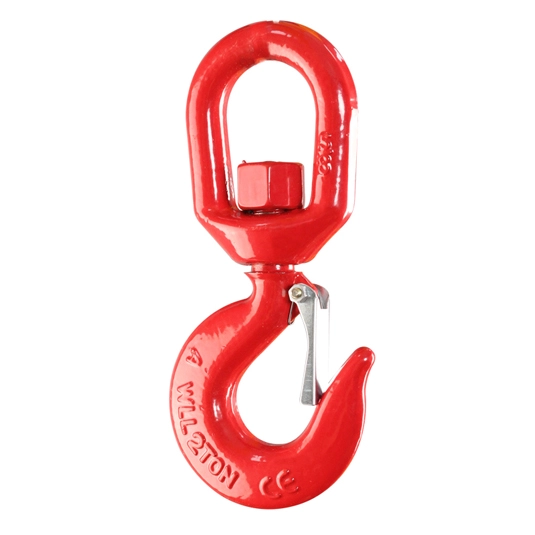

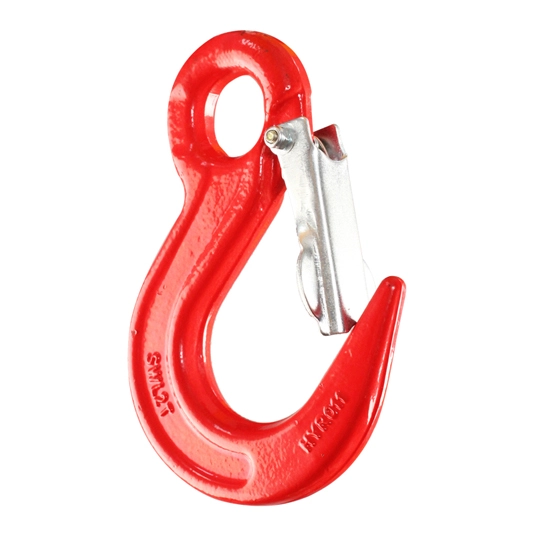

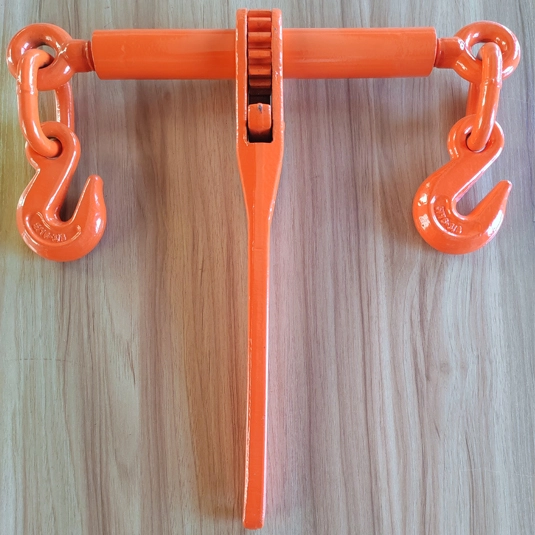

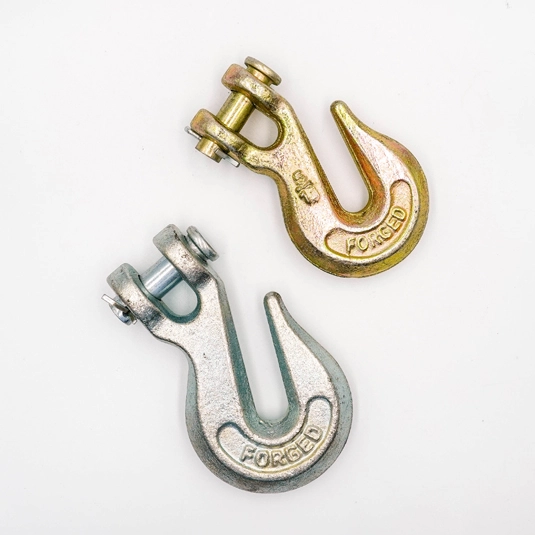

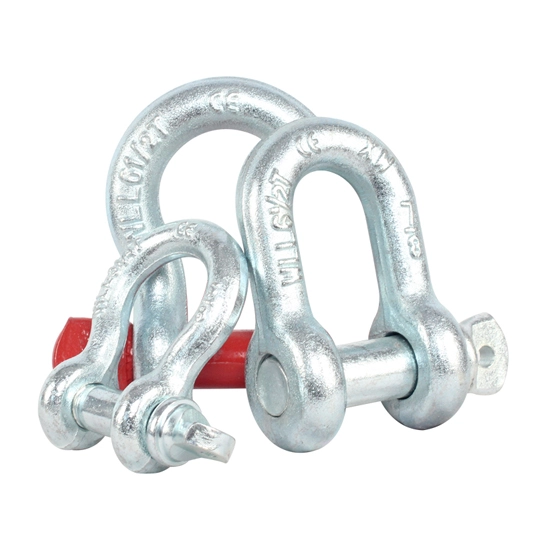

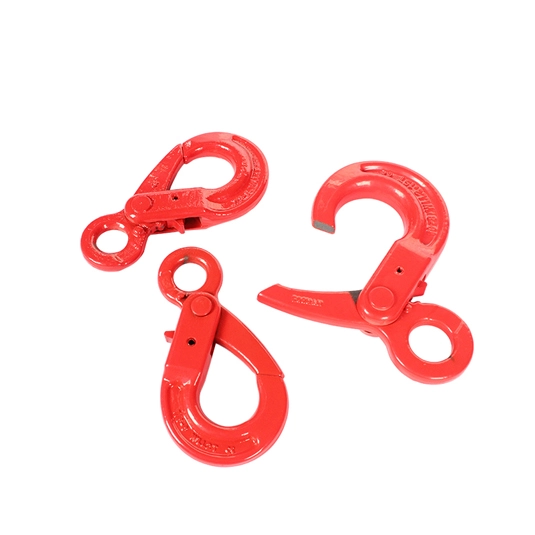

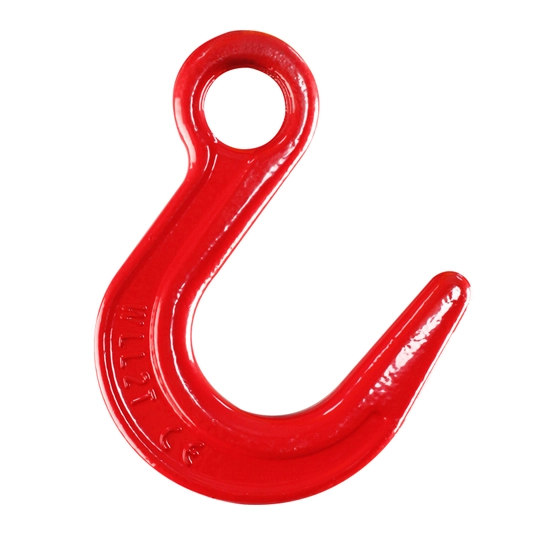

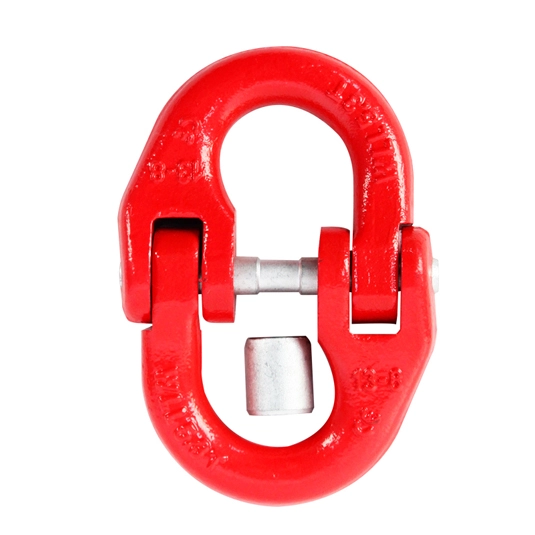

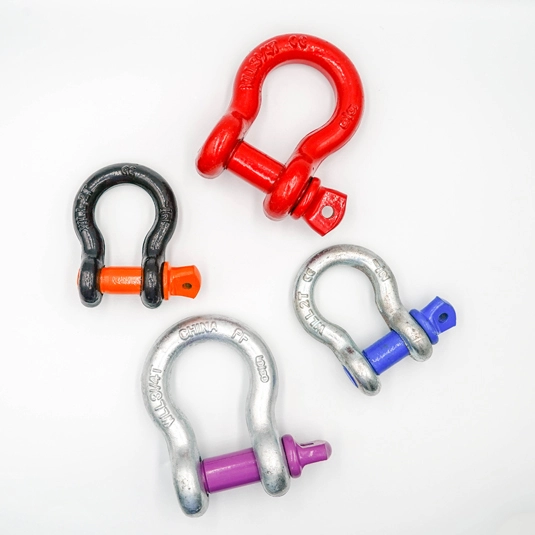

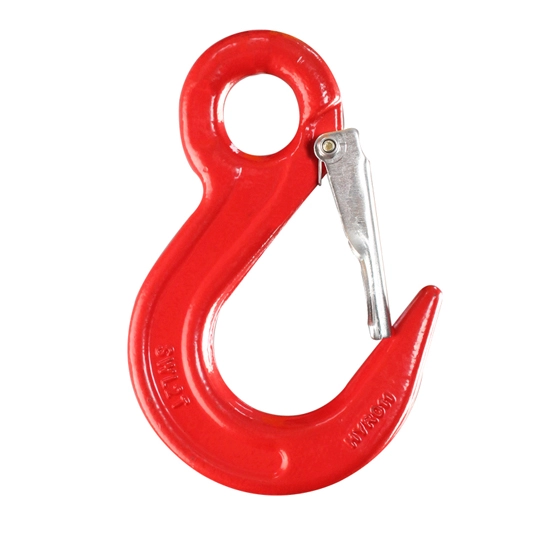

Riggings (SHACKLE, HOOK, RATCHET LOAD BINDER)

Name: Riggings (SHACKLE, HOOK, RATCHET LOAD BINDER)
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

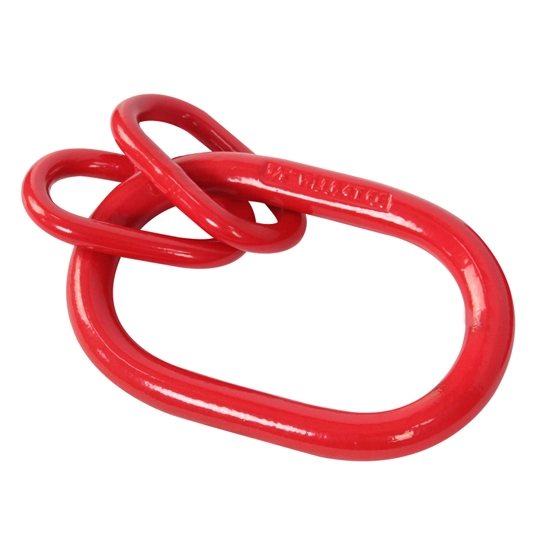

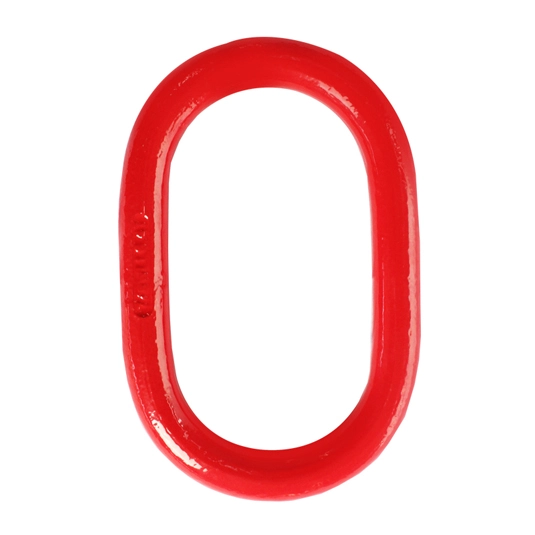

Rigging is equipment for lifting, pulling, or securing loads. Made of strong materials like steel or synthetics, components such as slings, hooks, and shackles ensure safe load - handling. Widely used in construction, manufacturing, shipping, etc., rigging's high - strength, reliable designs are crucial for safe lifting operations.

 

Specifications of Riggings (SHACKLE, HOOK, RATCHET LOAD BINDER)

Size (in)	WLL (t)	Dimensions(in)											Weight (1bs)
		A	B	C	D	E	F	G	H	L	M	P	G-209 S-209	G-213 S-213
		A	B	C	D	E	F	G	H	L	M	P	G-209 S-209	G-213 S-213
3/16	1/3	0.38	0.25	0.88	0.19	0.6	0.56	0.98	1.47	0.16	1.14	0.19	0.05
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	0.19	1.43	0.25	0.12	0.13
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	0.22	1.71	0.31	0.19	0.17
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	0.25	2.02	0.38	0.31	0.25
7/16	11/2	0.75	0.5	1.69	0.44	1.16	1.06	2.03	2.91	0.31	2.37	0.44	0.38	0.38
1/2	2	0.81	0.63	1.88	0.5	1.31	1.19	2.31	3.28	0.38	2.69	0.5	0.63	0.7
5/8	31/4	1.06	0.75	2.38	0.63	1.69	1.5	2.94	4.19	0.44	3.34	0.69	1.38	1.5
3/4	43/4	1.25	0.88	2.81	0.75	2	1.81	3.5	4.97	0.5	3.97	0.81	2.25	2.32
7/8	61/2	1.44	1	3.31	0.88	2.28	2.09	4.03	5.83	0.5	4.5	0.97	3.38	3.4
1	81/2	1.69	1.13	3.75	1	2.69	2.38	4.69	6.56	0.56	5.13	1.06	5.32	5
11/8	91/2	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	0.63	5.71	1.25	6.81	6.97
11/4	12	2.03	1.38	4.69	1.29	3.25	3	5.75	8.25	0.69	6.25	1.38	9.5	9.75
13/8	131/2	2.25	1.5	5.25	1.42	3.63	3.31	6.38	9.16	0.75	6.83	1.5	13.25	13.23
11/2	17	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10	0.81	7.33	1.62	17.2	17.25
13/4	25	2.88	2	7	1.84	5	4.19	8.86	12.34	1	9.06	2.25	30.38	29.46
2	35	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	1.22	10.35	2.4	45	45.75
21/2	55	4.13	2.75	10.5	2.71	7.25	5.69	12.87	17.84	1.38	13	3.13	85.75	一
