Electric Chain Hoist

Name: Electric Chain Hoist
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

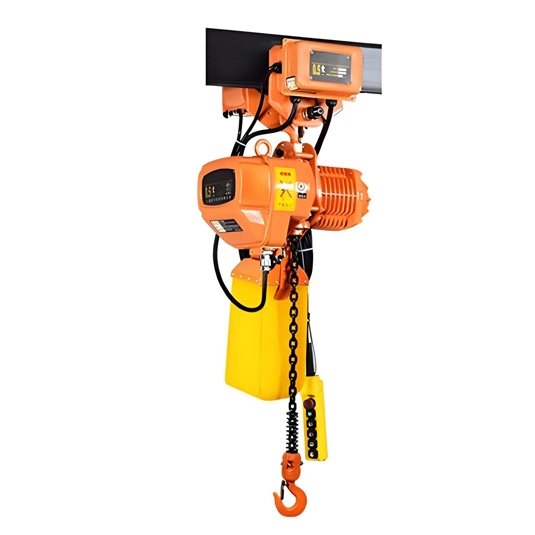

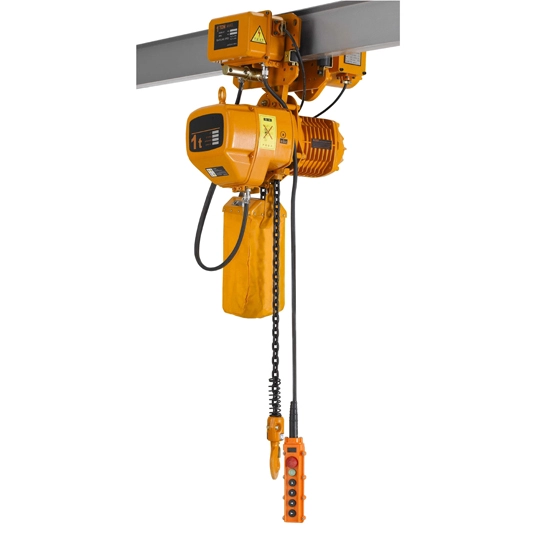

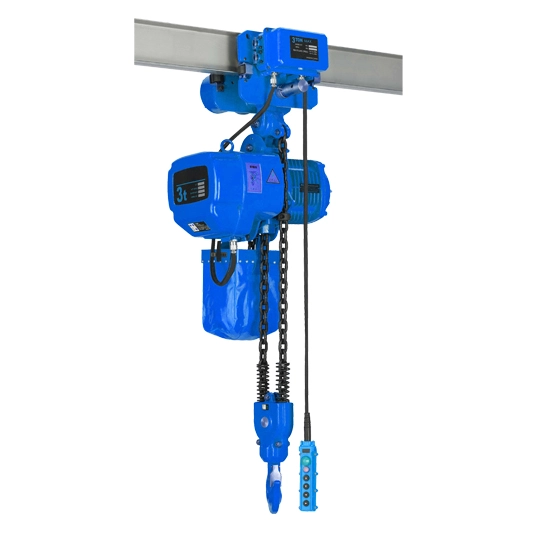

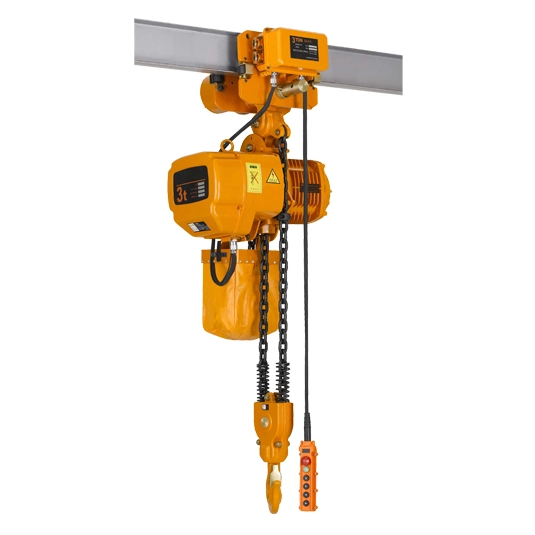

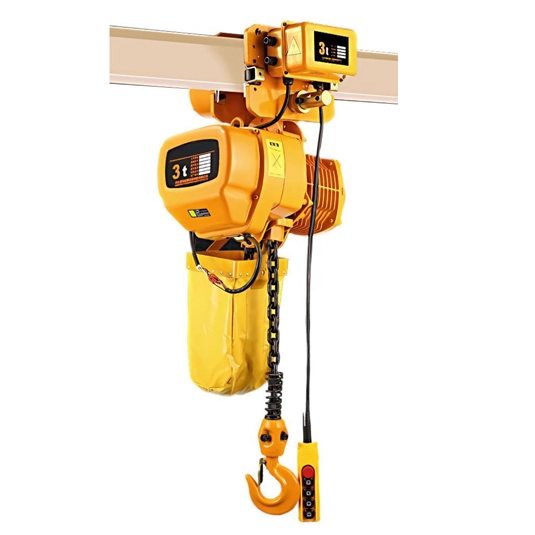

HHBB Electric chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.

 

Specifications of Electric Chain Hoist

BASIC PARAMETERS				0.5t—5t
Model	Rated load	Lfiting speed	Power		Voltage	Chain size	Net weight
0.5t4m single chain	0.5t	7.2m/min	1.1kw		380v	6.3mm	47kg
1t4m single chain	1t	6.8m/min	1.5kw		380v	7.1mm	61kg
1t4m double chain	1t	3.6m/min	1.1kw		380v	6.3mm	53kg
2t4m single chain	2t	6.6m/min	3.0kw		380v	10mm	115kg
2t4m double chain	2t	3.4m/min	1.5kw		380v	7.1mm	73kg
3t4m single chain	3t	5.6m/min	3.0kw		380v	11.2mm	115kg
3t4m double chain	3t	4.4m/min	3.0kw		380v	10mm	131kg
5t4m double chain	5t	2.8m/min	3.0kw		380v	11.2mm	145kg
