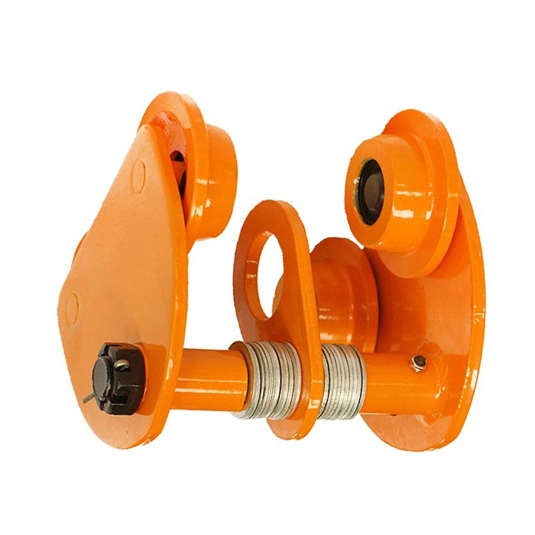

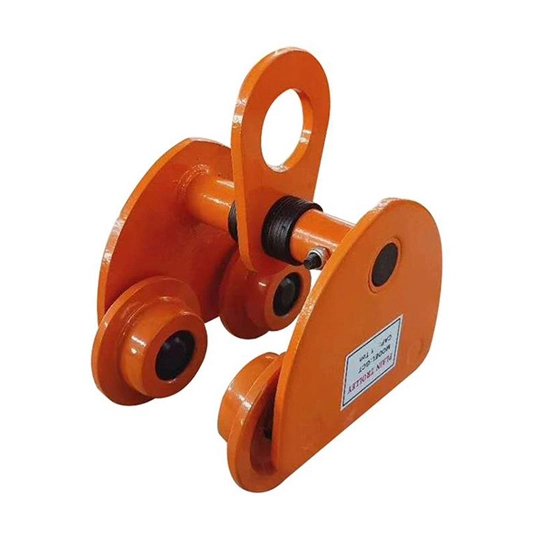

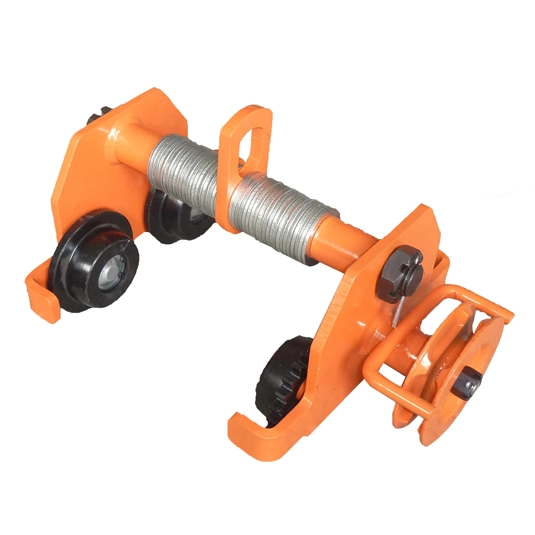

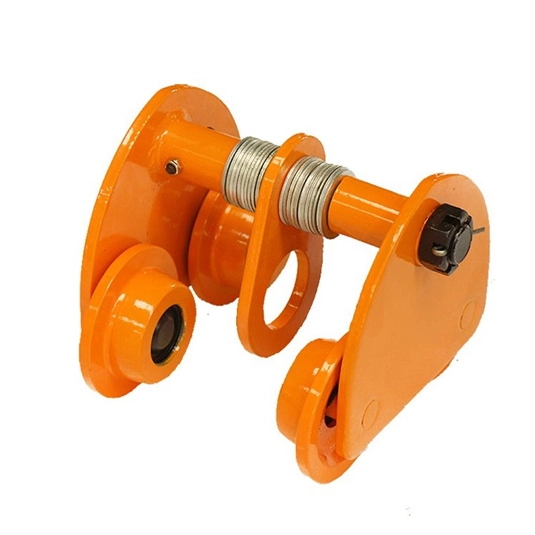

Plain Trolley

Plain trolley is a versatile and practical tool. It is widely used in workshops, warehouses, and construction sites for horizontal load movement. Its simple, lightweight, and cost-effective design makes it an ideal choice for light-duty tasks, while its compatibility with standard I-beams ensures easy integration into existing systems. With minimal maintenance requirements and user-friendly operation, the plain trolley is a reliable solution for efficient material handling.

Specifications of Plain Trolley

Rated load1/21235102030
Test load (ton)0.8251.252.253.255.2512.52537.5
Minimum orankle dia (m)0.911.11.31.41.51.61.7
main
size(mm)
A170190210230275350350450
B200235260325365440640800
C190220220300340400450420
H110130125175200240240240
F3333
I beam track
width GB706-88
Mmm68-12568-12588-145100-150100-175125-203125-203150-225
Net weight (kg)4.26.710.617.429.883140170
Gross weight (kg)4.356.910.817.6530.288145175


Features of Plain Trolley

1. Plain trolley is manually pushed - It moves loads horizontally along a beam by hand without a gear mechanism.

2. Plain trolley is simple in design - It consists of basic components, making it easy to use and maintain.

3. Plain trolley is lightweight and portable - It can be easily transported and installed in different locations.

4. Plain trolley is suitable for light loads - It is ideal for small-scale tasks in workshops or warehouses.

5. Plain trolley is cost-effective - It provides an economical solution for horizontal load movement.

6. Plain trolley requires minimal maintenance - Its straightforward design ensures durability with little upkeep.

7. Plain trolley is compatible with standard I-beams - It can be used with most overhead crane systems.
