Winch is a mechanical device that is driven by an electric motor and uses drums, wire ropes or chains to lift heavy objects vertically. It is highly efficient, labor-saving and easy to operate. It is widely used in industrial production, construction, cargo loading and unloading and other scenarios. It can adjust the lifting speed and load according to different needs, effectively improving the operating efficiency.

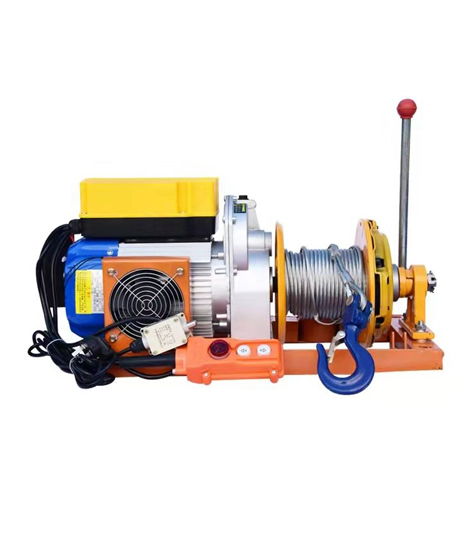

The working principle of the chain hoist winch is to achieve the lifting and lowering of heavy objects based on motor drive and mechanical transmission.
When the winch is powered on, the motor starts to run and generates a rotational torque. The motor shaft is connected to the input shaft of the reduction box through a coupling to transmit power to the reduction box. The reduction box usually adopts gear transmission. Through the combination of gears with different numbers of teeth, the high speed of the motor is reduced to a low speed suitable for lifting heavy objects, and the output torque is increased to meet the power required to lift heavy objects.
The output shaft of the reduction box is connected to the drum to drive the drum to rotate. The drum is wrapped with a wire rope or chain. As the drum rotates, the wire rope or chain will be retracted and released on the drum. If the heavy object is to be lifted, the drum will reel in the wire rope or chain, and the heavy object will be lifted by a hook or other device connected to the end of the wire rope or chain; if the heavy object is to be lowered, the drum will rotate in the opposite direction, release the wire rope or chain, and lower the heavy object.
In addition, the winch is also equipped with a brake. When the motor stops running, the brake will immediately brake the drum to prevent the heavy objects from sliding down due to gravity, ensuring the safety of the lifting process. At the same time, the control system can realize the start, stop, speed adjustment and other operations of the winch to meet the needs of different working scenarios.
The precautions for daily maintenance of winch are as follows:
Cleaning and inspection
Clean the surface of the hoist regularly to remove dust, oil and other debris to prevent them from entering the interior and affecting performance.
Check whether the connecting bolts of each component are loose. If they are loose, tighten them in time to avoid component damage or safety accidents caused by looseness.
Check the wear of the wire rope or chain. If the wear exceeds the specified range, it should be replaced in time to ensure the safety of lifting.
Lubrication and maintenance
According to the requirements of the equipment manual, regularly add or replace lubricating oil to the reducer, drum bearing and other parts to ensure their good lubrication state, reduce wear and reduce the probability of failure.
The moving parts of the brake should also be properly lubricated to prevent them from rusting and jamming, but be careful to avoid lubricating oil from getting on the brake pads and brake wheels to avoid affecting the braking effect.
Electrical system maintenance
Check whether the power cord is damaged or aging. If there is a problem, replace it in time to prevent leakage accidents.
Clean the dust in the control box regularly, check whether the connections of each electrical component are firm, and check whether there are any abnormal conditions such as overheating or ablation. If necessary, repair or replace them in time.
Winch have broad application prospects, as follows:
Industrial field: With the acceleration of industrial automation and intelligentization, they are increasingly used in manufacturing, such as material handling on production lines, loading and unloading of machine tools, etc. At the same time, in mining, chemical and other industries, because they can meet the needs of operations in harsh environments, they can be used to transport ore, chemical raw materials, etc., and future demand will continue to grow steadily.
Construction field: Infrastructure construction is a key development area of the country. The construction industry has a huge demand for winch which are used for vertical transportation of building materials, equipment and personnel in high-rise building construction. With the rise of the green economy, energy-saving and environmentally friendly hoists will be more popular to meet the environmental protection requirements of construction.
Logistics field: In port cargo loading and unloading, warehousing and logistics and other links, winch can realize the rapid lifting and handling of goods and improve logistics efficiency. The growth of global trade will further expand its application in ports and logistics.
