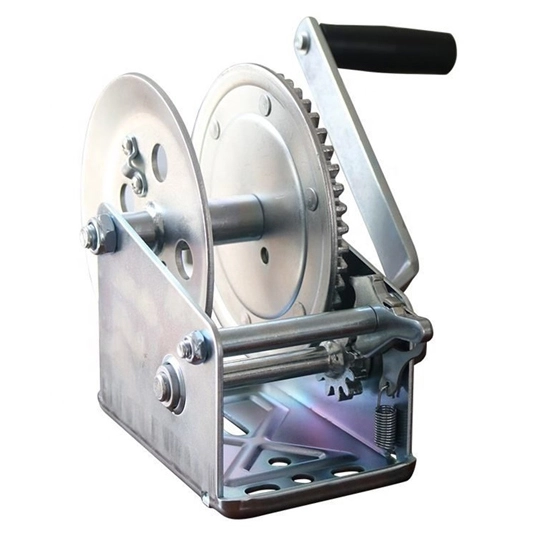

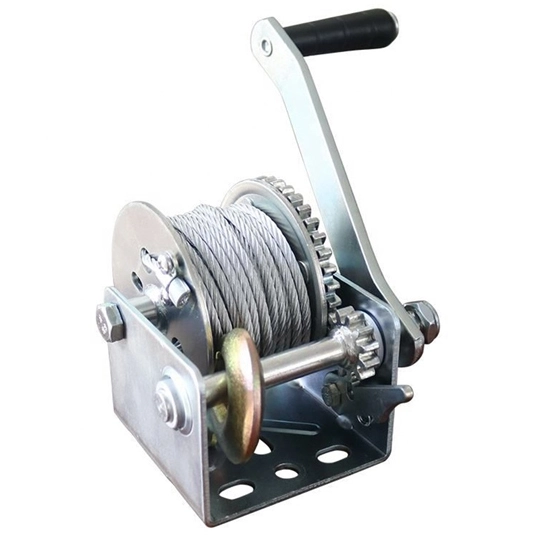

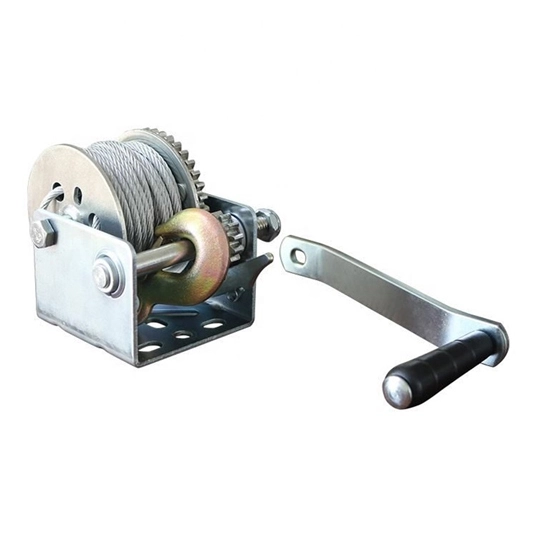

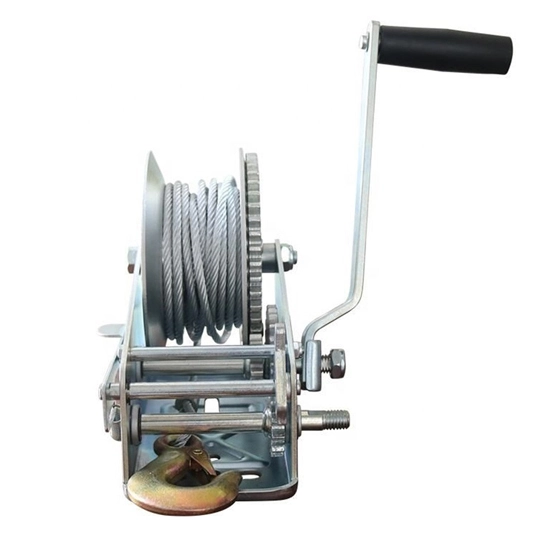

Hand Winch

Name: Hand Winch
Brand: Baoding Huaxin Crane Machinery Co., Ltd.

The portable hand winch can be used alone, and can also be used as a component of hoisting, road building, mine hoisting and other machinery. It is widely used because of its simple operation, large amount of rope winding and convenient displacement. It is mainly used for material lifting or flat dragging of buildings, water conservancy projects, forestry, mines, docks, etc.

 

Specifications of Hand Winch

Item No.	Rated Capacity (1bs)	Breaking Force (1bs)	Cable Size	Strap Size	Gear Ratio	Way/Speed	Pcs/Ctn	Meas. (cm)
FD-B600	600	900	4.5mmX8m	0.9mmx50mmx8m	3.2:1	2 way/1 speed	10	60X40X16
FD-B800	800	1200	4.5mmX8m	0.9mmx50mmx8m	3.2:1	2 way/1 speed	10	60X40X16
FD-B1000	1000	1500	4.5mmX8m	1.0mmx50mmx8m	4:1	2 way/1 speed	6	66X27X18
FD-B1200	1200	1800	4.5mmX8m	1.0mmx50mmx8m	4:1	2 way/1 speed	6	66X27X18
FD-B1400	1400	2100	4.5mmX8m	1.0mmx50mmx8m	4:1	2 way/1 speed	6	66X27X18
FD-B1600	1600	2400	4.8mmX10m	1.0mmx50mmx8m	5:1	2 way/1 speed	4	45X31X20
FD-B1800	1800	2700	4.8mmX10m	1.2mmx50mmx8m	5:1	2 way/1 speed	4	45X31X20
FD-B2000	2000	3000	4.8mmX10m	1.2mmx50mmx8m	4:1/8:1	2 way/2 speed	4	52X31X20
FD-B2500	2500	3750	5.0mX10m	1.2mmx50mmx8m	5:1/10:1	2 way/2 speed	4	53X33X20
FD-B3000	3000	4500	5.0mmX10m	1.3mmx50mmx8m	5:1/10:1	2 way/2 speed	4	53X33X20
